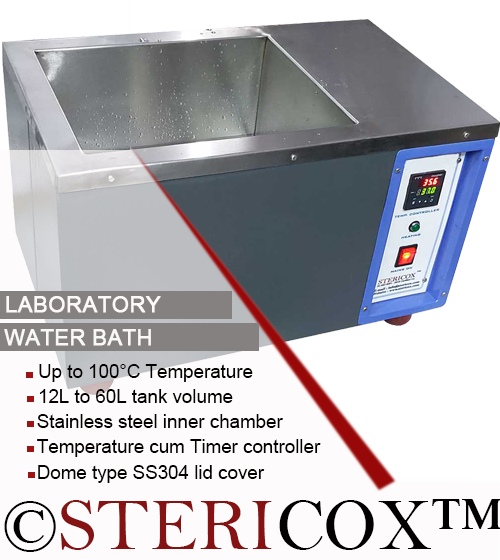

Laboratory Water Bath

Constant temperature water bath without stirring facility

Unstirred Water Bath

Unstirred water bath are constant temperature bath units and are available without stirring facility. The standard chamber volumes are available as 12 liters, 18 liters, 25 liters, 32 liters and more. Our unstirred water bath are equipped with immersion heating system for temperature control between ambient+5°C to 99°C range. Models of economical price range have only thermostatic temperature controller and advance constant water bath units are equipped with digital PID temperature controller having both SV and PV display. Timer is optional and can be fitted on special request.

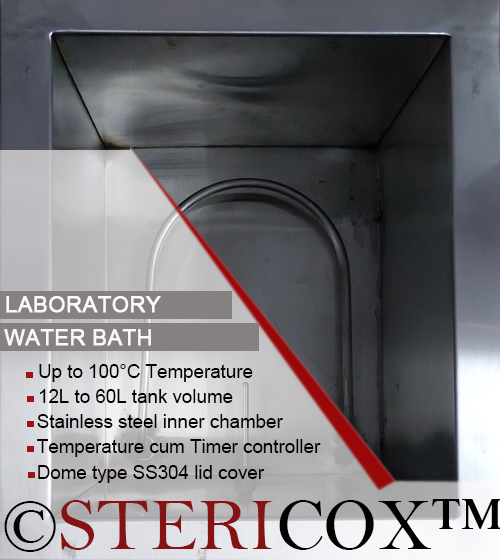

Our unstirred water baths feature double walled construction having thick glass wool insulation on 5 sides to ensure minimum heat loss. The inner chamber is made of thick gauge of stainless steel 304 grade sheets and so carefully designed that cleaning becomes an easy job; only mild detergent cleaning with sponge as maintenance. Each unit is supplied with stainless steel perforated tray to place slides and flasks on them. To remove waste water a drain tap is provided at rear side of water bath; other standard fittings are machine on/off switch, pilot lamp and power cable with three pin top. These units

To know more about unstirred or constant temperature water bath price, please email us your query.

Features & Benefits

  • Designed for constant temperature control
  • Rugged double wall construction
  • Corrosion resistant exterior
  • 5 sides glass wool insulation
  • 304 stainless steel tank
  • ISI mark immersion heater
  • Microprocessor PID temperature controller
  • Only detergent cleaning with sponge enough

TECHNICAL SPECIFICATIONS

Temperature range Ambient+10°C to 100°C
Temperature accuracy ±0.5°C
Temperature controller
  • PID temperature controller
  • LED display of SV & PV
  • In-built auto-tuning feature
Temperature sensor PT100
Heater Immersion type stainless steel heating elements
Construction Double walled
Insulation Glass wool (5 sides)
Inner chamber Stainless Steel 304
Exterior Powder coated MS
Lid Stainless steel 304 dome type lid cover
Tray Stainless steel 304 perforated tray to keep samples
Power supply 220 Volts 50 Hz
Standard fittings
  • Brass drain tap
  • Pilot lamp
  • Mains On/off switch
Optional
  • Stirrer with shaft and motor
  • Digital timer
  • Exterior SS 304 construction

STANDARD DIMENSIONS / SIZES

Model Dimensions (mm) Volume
STXUWB12 300 x 175 x 175 12 Liters
STXUWB14 300 x 250 x 175 14 Liters
STXUWB18 375 x 300 x 175 18 Liters
STXUWB25 475 x 300 x 175 25 Liters
STXUWB32 605 x 300 x 175 32 Liters

NOTE: Customized large sizes are also made on order
