Laboratory Water Bath

Circulating water bath with combination of refrigeration and heating

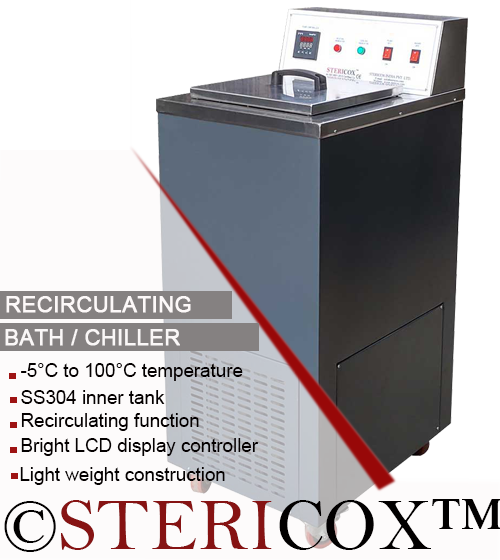

Refrigerated Water Bath

Refrigerated Water Baths meet the most demanding needs of applications that require refrigeration with circulation. These refrigerated (chilller) circulating baths can easily reach up to -30°C temperature and are easy to use and safe for operator and samples.

Refrigeration + Heating

We also manufacture water baths with a combination of refrigeration and heating, the machine works as low as -30°C and also high as 100°C. Such circulating baths provide reliable temperature control for a wide variety of laboratory cooling applications. Excellent temperature accuracy is what our refrigerated water bath circulators offer, once a temperature is achieved in the machine, it remains stable during overall working process. The construction is durable; interior is completely made of 304 stainless steel; with stainless steel, wiping and cleaning becomes easy after use. Exterior is made of either powder coated mild steel or stainless steel. For temperature adjustment, digital PID controller is fitted at front side of the unit.

We are refrigerated water bath manufacturers in India. To meet your requirements of specific application, we can design and construct the same unit which fulfills your needs. If you have any specific size, temperature range, controllers or any other accessory, please discuss with our engineering team. We assure you of unmatched quality and competitive price throughout India.

Features & Benefits

  • Available in cooling only or cooling + heating combined
  • Temperature -10°C to -30°C also available
  • Precise water temperature accuracy
  • CFC free refrigeration system
  • Circulation through imported pump
  • Stainless steel 304 inner tank
  • Microprocessor PID temperature controller
  • Caster wheels with brake on bottom

TECHNICAL SPECIFICATIONS

Model STXRHWB15 STXRHWB30
Volume Up to 15 Liters Up to 30 Liters
Inner Dimensions (mm) 250 x 250 x 250 500 x 250 x 250
Temperature range 5°C to 100°C (-10°C to 100°C Optional)
Inner chamber SS 304
Exterior Powder coated GI sheet
Lid SS lid with handle
Temperature controller Digital PID controller with SV & PV
Temperature sensor PT100
Refrigeration system CRF free
Heating system ISI mark immersion heaters
Circulation pump 10 - 15 liters per minute
Safety feature Over temperature cut-off
Power supply 220 volts 50 Hz
Standard Fittings
  • Inlet & outlet ports
  • Drain valve
  • Low level cut-off
  • Mains ON/OFF switch
  • Pilot lamps
  • Power cable
Optional
  • Temperature up to -20°C, -30°C
  • Stainless steel exterior
  • RS 232 interface
  • Lockable caster wheels
Refrigrated Circulating Water Bath
Refrigerated Water Bath Circulator
Submit Your Request

Need Customization?
Let us design your refrigerated water bath as you need
