Laboratory Water Bath

Digital Mash Bath Equipment with 4, 6, 8, 10 and 12 jars

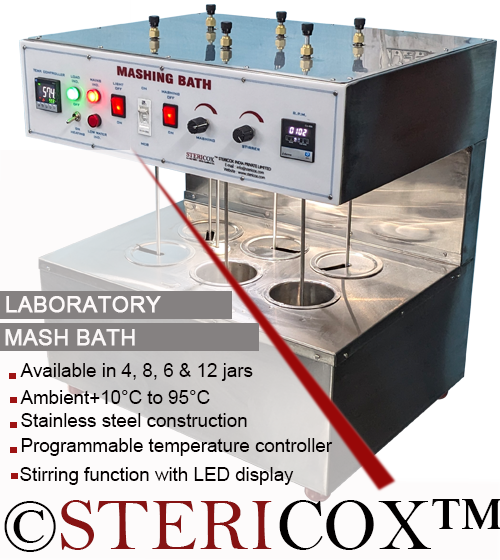

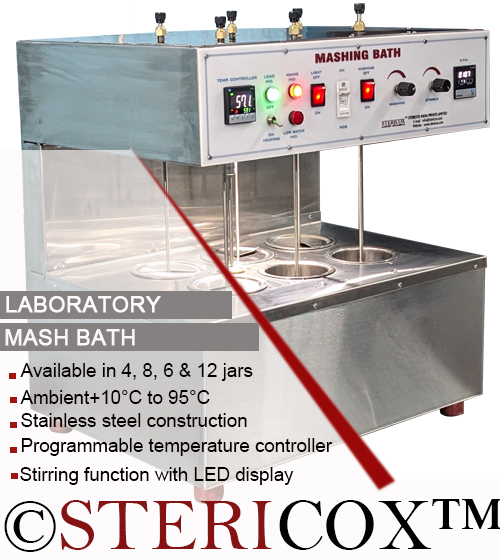

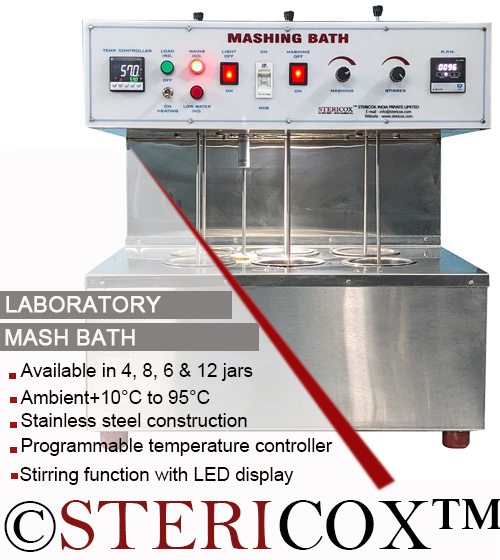

Malt Mashing Bath

Mashing bath equipment is widely used in laboratories on breweries and malt companies. These mashing baths are made to work on Congress and Hartong procedures with 4, 6, 8, 10 and 12 numbers of agitators or jars. A mash bath is comprised of a metallic chamber with stainless steel jars, motorized stirrer with speed regulator and a temperature controller. Inner chamber is made with thick sheet of stainless steel and outer body is made of powder coated GI sheet for corrosion resistance feature.

Our laboratory mashing bath units are available at wholesale price in India. In addition to standard models, we also make customized units with several optional arrangements including Profile controller with digital timer, HMI color touch screen controller, RS232 interface and others. Please email us your query; our executives will assist you with price list, quotation and other important technical details.

TECHNICAL SPECIFICATIONS

Model STXMSB4 STXMSB6 STXMSB18 STXMSB10
Beakers 4 6 8 10
Temperature Up to 95°C
Temperature accuracy ±0.2°C
Temperature sensor PT100
Temperature controller
  • PID temperature controller
  • Display of SV & PV
Stirrer Heavy duty motor with SS shafts
Stirrer speed 15 - 150 rpm
RPM Display LED Display
Stirrer controller Rotary type variable speed controller
Working chamber Stainless steel 304
External body Powder coated GI sheet
Alarm Audio / visual alarm
Power supply 220 volts 50Hz
Method Congress: Mashing by temperature program
Hartong: Mashing at constant temperature (20°, 45°, 65° or 80° C)
Optional
  • Profile controller
  • Digital timer
  • RS232 PC interface
  • HMI color touch screen controller
  • All Stainless steel construction
  • Specific jar capacity
