Laboratory Water Bath

Water bath rectangular shape with 4, 6, 12 holes

Water Bath 6, 12 Holes

Our boiling water baths come in rectangular shape and engineered to meet most demanding needs of heated applications. We make 3 models that are available in 4 (four), 6 (six) and 12 (twelve) holes. Temperature range is Ambient +5°C to 100°C, which is controlled through thermostatic regulator. Temperature can be seen on LED display. These water baths are constructed with 304 stainless steel for inner chamber; exterior using powder coated GI sheet. External and internal surfaces feature corrosion resistance property and also easy to wipe and clean after use.

These units also have load indicators which indicate running status of machines. Water drain nozzle is fitted at back side of the machines. If you want to buy Stericox™ rectangular water bath 6 and 12 holes, please email your required size / dimensions, number of holes and other important details. We will contact you with precise quotation and price list and availability details.

TECHNICAL SPECIFICATIONS

Model STXWBH4 STXWBH6 STXWBH12
No of holes 4 6 12
Lid Concentric rings
75 mm dia.
Concentric rings
75 mm dia.
Concentric rings
75 mm dia.
Temperature Ambient+5 to 100°C Ambient+5 to 100°C Ambient+5 to 100°C
Temperature controller Thermostatic rotary knob Thermostatic rotary knob Thermostatic rotary knob
Display LED Display LED Display LED Display
Construction Double walled Double Walled Double walled
Inner MOC SS 304 SS 304 SS 304
External MOC Powder coated GI sheet Powder coated GI sheet Powder coated GI sheet
Insulation Glass wool Glass wool Glass wool
Power supply 220 Volts 50 Hz 220 Volts 50 Hz 220 Volts 50 Hz
Optional
  • Digital temperature controller
  • SS 304 exterior
  • Digital temperature controller
  • SS 304 exterior
  • Digital temperature controller
  • SS 304 exterior

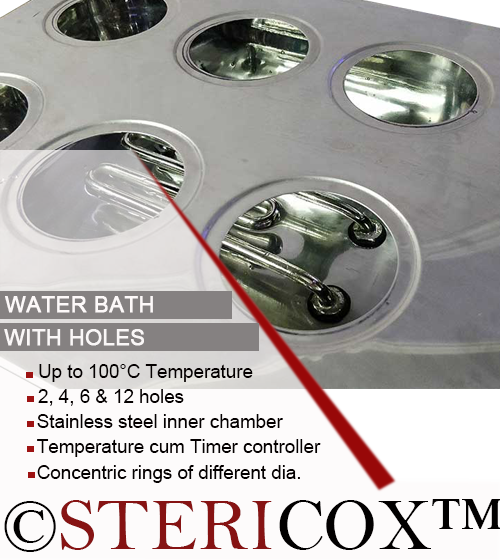

6 Holes Digital Water Bath

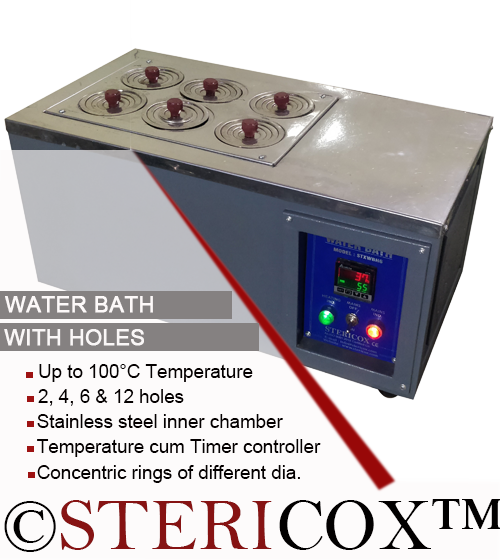

6 Holes Water Bath
4 Holes Water Bath
Submit Your Request

6 Holes Water Bath Video


Need Customization?
Let us design your specific water bath as you need
