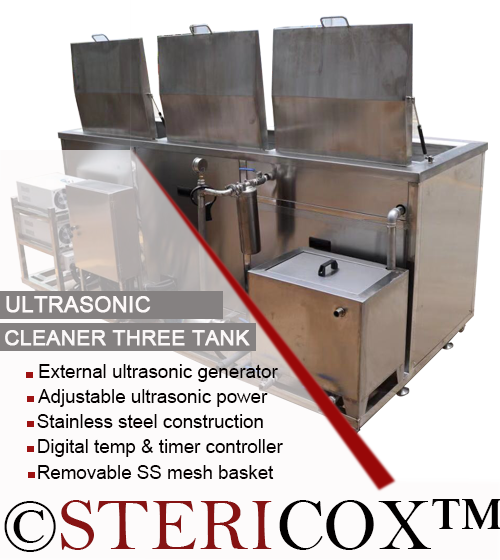

Multi tank ultrasonic cleaners are industrial grade machines having 3 tanks fitted in single unit; in which, first tank is used for ultrasonic cleaning and filtration, second tank is used for ultrasonic rinsing and third tank is used for drying purpose. The overall construction is made from thick gauge sheet of stainless steel 304; depending upon cleaning liquid, we can also use stainless steel 316. These multi-tank ultrasonic cleaners are industrial grade machines are extensively used in cleaning applications of electronics, optical, semiconductor, medical implants, aerospace components and hard disk drive components etc. In addition to below mentioned standard models, we can also make customized machines at factory price with supply, installation and service all over India.
TECHNICAL SPECIFICATIONS
| Number of tanks |
3 tanks (Cleaning, Rinsing & Drying) |
| 1st Tank |
Ultrasonic Cleaning tank w/ filtration system |
| 2nd Tank |
Ultrasonic Rinsing tank |
| 3rd Tanks |
Hot air drying tank |
| Construction |
Stainless steel 304 |
| Basket |
Stainless steel 304 |
| Temperature |
Up to 95°C |
| Temperature controller |
Digital temperature controller |
| Timer |
Digital timer controller |
| Ultrasonic frequency |
28/40 KHz |
| Ultrasonic direction |
Bottom shock |
| Ultrasonic generator |
Split type |
STANDARD SIZES / DIMENSIONS
| MODEL |
VOLUME |
FREQUENCY |
INNER DIMENSIONS |
ULTRASONIC POWER |
| STXCRD38 |
38 Liters |
28 / 40 KHz |
500 x 300 x 250 mm |
600 W |
| STXCRD61 |
61 Liters |
28 / 40 KHz |
500 x 350 x 350 mm |
900 W |
| STXCRD88 |
88 Liters |
28 / 40 KHz |
550 x 400 x 400 mm |
1200 W |
| STXCRD108 |
108 Liters |
28 / 40 KHz |
600 x 450 x 400 mm |
1500 W |
| STXCRD135 |
135 Liters |
28 / 40 KHz |
600 x 500 x 450 mm |
1800 W |
| STXCRD175 |
175 Liters |
28 / 40 KHz |
700 x 500 x 500 mm |
2400 W |
| STXCRD264 |
264 Liters |
28 / 40 KHz |
800 x 600 x 550 mm |
3000 W |
| STXCRD360 |
360 Liters |
28 / 40 KHz |
1000 x 600 x 600 mm |
3600 W |
