LABORATORY STIRRERS & HOT PLATES

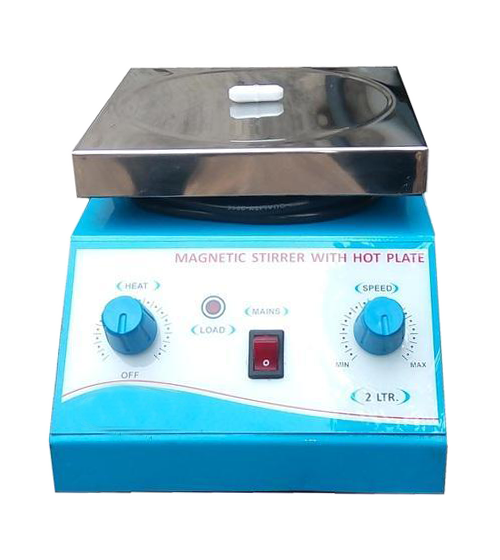

Magnetic Stirrer with Hot Plate

Combination of magnetic stirrer and hot plate in single unit

There are applications that need stirring along heating; in this case magnetic stirrers with hot plates play important role in chemical laboratory. We make stirring hot plates in different capacities such as 1, 2 and 5 liters and more. The heating top is made of stainless steel; while, outer cabinet is made of powder coated mild steel. Temperature is controlled through digital PID controller and speed is controlled through speed regulator.

Designed for continuous stirring and heating, these magnetic stirrer hot plates are mainly used for warm applications, culture medial preparation, soil science and biotechnology. Each unit offers precise stirring with controlled heating. These are light weight, easy to use, durable and available at reasonable price in India.

TECHNICAL SPECIFICATIONS

Model STXSHP01 STXSHP02 STXSHP05
Temperature 200°C
Temperature controller Thermostatic controller
Stirring capacity 1 Liter 2 Liters 5 Liters
Plate MOC SS 304
Cabinet MOC Powder coated MS
RPM Controller Speed Regulator
Dimension (W x D x H) 160 x 160 x 200 mm 160 x 160 x 200 mm 175 x 185 x 225 mm
Wattage 150 W 300 W 500 W
Power supply 220 Volts 50 Hz
Optional
  • Digital temperature controller
  • Digital timer
  • Digital RPM display
  • Any specific dimension
  • Multi-position
Multiposition Magnetic Stirrer with Hot Plate
Magnetic Stirrer Hot Plate
Submit Your Request

Magnetic Stirrer Hot Plate Videos

Need Customization?
Let us design magnetic stirrer with hot plate as you need
