Electric heated air tray dryers for pharma, tea leaf & food industries

Electric Tray Dryer

Tray dryer or tray drying oven is widely used in laboratories, pharmaceutical, food, chemical and automobile industries to remove moisture content from final product. As the name states, trays are important part of these machines, samples are put in trays, loaded on trolley and then dried under heated chamber under different temperatures such as 100°C, 160°C, 250°C etc. with air circulation.

We are tray dryer manufacturers and suppliers in India. We make electric tray dryers for laboratory use and production scale in pharmaceutical and food processing and even for drying tea leaves. These tray dryers are available in 6, 12, 24, 48, 96 up to 200 tray capacities. In order to minimize drying cost and time; it is ensured that there should be efficient air velocity between trays and gap between trays should be uniform. Large sizes are also made on request and sold at highly competitive price in India.

Our standard air tray dyers are made with stainless steel and insulated with glass wool for reducing heat loss.

FEATURES & BENEFITS

  • Energy efficient
  • Uniform gap between trays
  • Efficient air velocity between trays
  • Air circulation through Axial flow fans
  • Corrosion resistant exterior
  • Faster drying time
  • Stainless steel trays
  • Over temperature protection
  • Low maintenance


TECHNICAL SPECIFICATIONS

Model STXTD06 STXTD12 STXTD24 STXTD48 STXTD96
No. of Trays 6 12 24 48 96
Tray Size 16" (L) x 32" (W) x 1.25" (H)
Tray MOC SS304 / SS316 / SS316L
Inner construction SS304 / SS316 / SS316L
Outer Construction Powder coated MS / SS304 / SS316 / SS316L
Insulation Glass wool
Air circulation Motor driven blower
Temperature Range 50°C to 200°C, 250°C and 300°C
Temperature controller
  • PID temperature controller
  • Display of SV & PV
Temperature sensor PT-100
Heater U shape air heaters
Safety Over temperature safety thermostat
Power supply 220 / 440 Volts 50 Hz (Single or Three Phase)
Optional
  • Loading trolley with wheels
  • Digital timer
  • RS232 computer interface
  • PLC based HMI controller
Note Large size or heavy load tray dyers are made on request
Pharmaceutical Tray Dryer

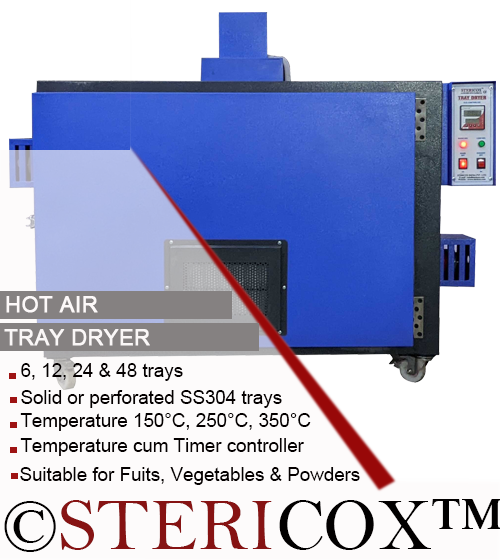

Tray Dryer for Tea Leaf

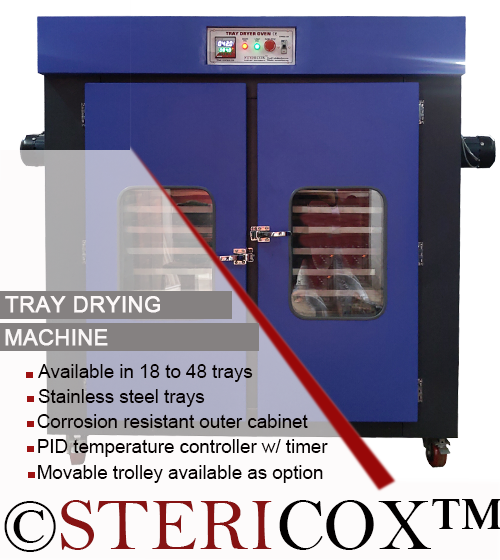

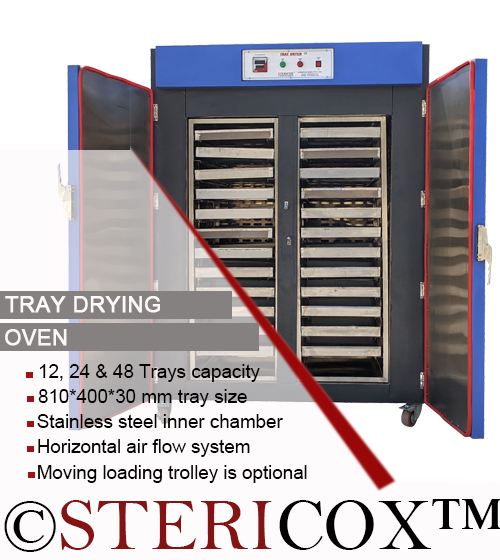

Tray Drying Oven

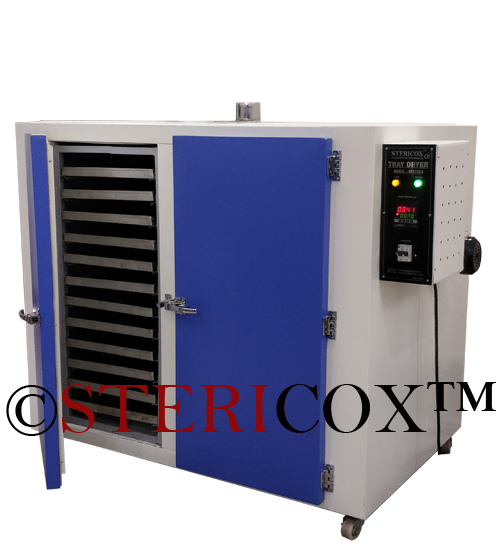

Air 24 Tray Dryer
