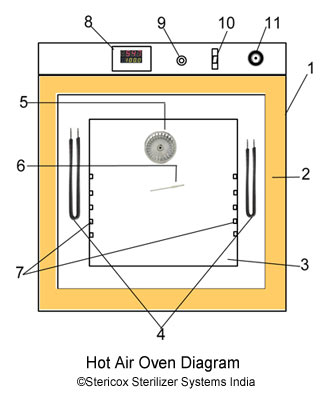

Hot Air Oven Diagram
2. Glass wool insulation
3. Inner chamber
4. Tubular air heaters
5. Motor driven blower
6. Temperature sensor
7. Tray slots
8. PID temperature controller
9. Load indicator
10. Mains on/off switch
11. Safety thermostat

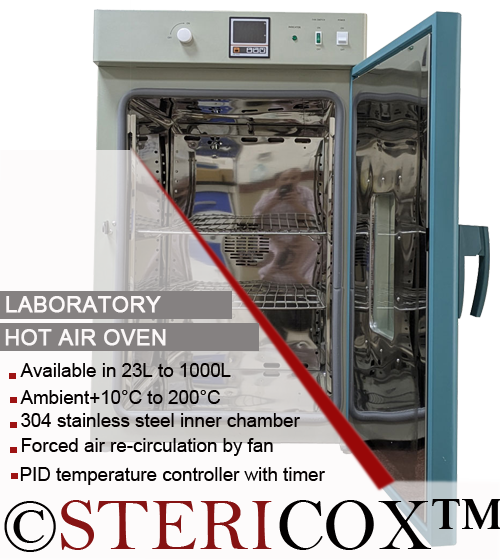

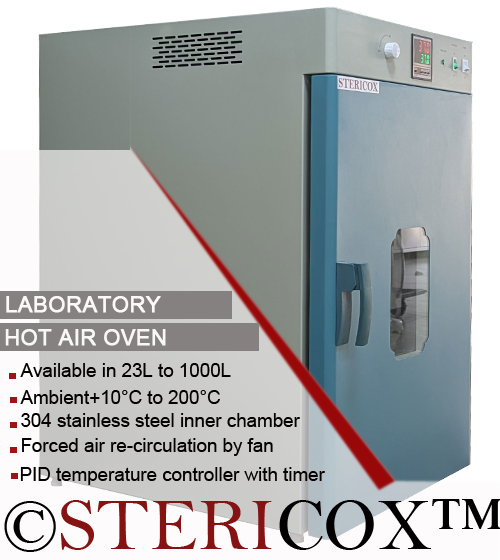

Hot Air Ovens are designed to generate heat with air circulation inside chamber at temperature from ambient+10°C to 150°C, 250°C or 300°C. Such forced air circulating ovens are used to dry glassware, packaging items, sterilize general instruments various research purposes etc. There are various industries, where hot air oven are used such as chemical and pharmaceutical industries, food and beverage industries, textile, electronic components and steel manufacturing industries and microbiology laboratory etc.
The core job of a hot air oven is to eliminate moisture from the material; therefore, it is used in related applications such as curing, drying, baking, annealing and even storage of certain products at constant temperature in laboratory and hospitals etc.
Being a manufacturing company, we have developed our range of hot air ovens for life science applications, medical and general laboratory uses and light industrial applications. Meeting all performance standards and equipping with enhanced safety features, our laboratory hot air ovens are considered most reliable forced air drying units throughout India and worldwide.
We make hot air ovens in various temperature ranges, material of construction and chamber dimensions. Maximum operating temperature range of these ovens are 250°C, 300°C, 350°C and 400°C which is controlled through microprocessor based PID controller. It displays both set value (SV) and process value (PV) and with the help of PT100 temperature sensor, it controls the temperature precisely. Forced air circulation is maintained using branded motor driven blower system. For heating, we use ceramic bead heating elements or tubular air heaters for high temperature. Each unit is fitted with over temperature protection device (safety thermostat), which keeps your oven safe in case of controller failure.

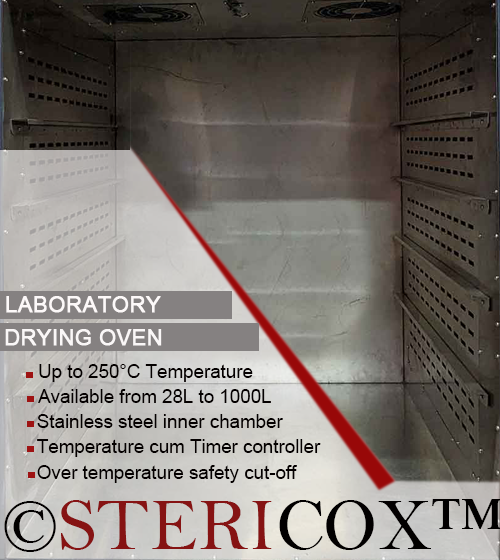

A hot air oven must have attractive design, rugged construction and easy to clean surface; therefore, internal chamber of our ovens is made of thick gauge of stainless steel (SS 304 / SS 316). Corners are such designed that cleaning becomes an easy job for operator. Shelves are made of stainless steel wire mesh cable; these are removable in order to adjust the height level. Depending upon size of internal chamber quantity of shelves may vary from 2 to 5 or more. External cabinet is made of either powder coated mild steel, GI sheet or stainless steel as required. For easy mobility of large size ovens, caster wheels with brake are fitted at the bottom.
We are hot air oven manufacturers and suppliers in India; having oven factory in Delhi, we have capability to develop any customized oven that fits your specific requirements. If you want to buy a drying oven for laboratory or any other application, please choose from below mentioned standard models. If you have specific size and temperature requirement, we can also design customized large industrial ovens at reasonable price in India.
There are several optional accessories are also available to fit in your hot air oven; such as, explosion proof heater, digital timer, PLC based HMI controller, RS485 computer interface, 21 CFR software, data logger and circular chart recorder and HEPA filter air inlet etc.
|Temperature range||Ambient +5°C to 200°C|
|Inner chamber||Stainless steel 304|
|Exterior||Mild steel powder coated|
|Shelves||SS wire mesh cable trays (removable)|
|Door||Insulated solid door with clamp|
|Door gasket||Synthetic rubber gasket|
|Air circulation||Motor driven blower assembly|
|Vent port||1 or 2 depending upon chamber size|
|Safety||Over temperature protection|
|Power supply||220 Volts / 50 Hz|
Note: We also make large size ovens (Walk-in oven)
|Model No.||Size (Inch)||Size (mm)||Capacity (Liters)|
|STXLO28||12" X 12" X 12"||300 x 300 x 300||28 L|
|STXLO45||14" X 14" X 14"||350 x 350 x 350||45 L|
|STXLO95||18" X 18" X 18"||450 x 450 x 450||95 L|
|STXLO127||18" X 18" X 24"||450 x 450 x 600||127 L|
|STXLO226||24" X 24" X 24"||600 x 600 x 600||226 L|
|STXLO254||18" X 24" X 36"||450 x 600 x 900||254 L|
|STXLO340||24" X 24" X 36"||600 x 600 x 900||340 L|
|STXLO513||28" X 28" X 40"||710 x 710 x 1016||513 L|
|STXLO768||31.5" X 31.5" X 47.2"||800 x 800 x 1200||768 L|
|STXLO1000||39.4" X 39.4" X 39.4"||1000 x 1000 x 1000||1000 L|
