Knife Mill

Model HM100 knife mill has 2 blades knife and motor of 1100W. It is suitable for sample volume up to 700ml and available with grinding container of 1 Liters. Grinding container can be selected from autoclavable plastic, stainless steel, PP, and glass. Blade / knife are available in stainless steel or titanium alloy. With HM100, coarse grinding and fine grinding can be realized in one step. There are three operational modes: interval mode, reverse mode and press-and-play mode.

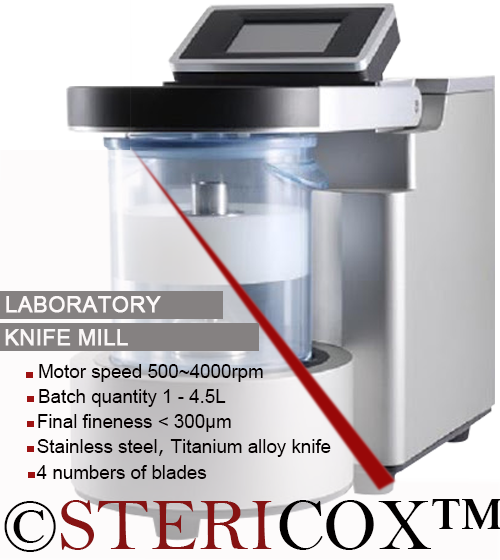

HM300 laboratory knife mill comes with 4 blade knives and heavy duty motor with adjustable 500 to 4000 rpm. This knife mill blender is designed for high volume grinding and homogenization up to 4.5 Liters. This instrument features 5 inch color touch screen display controller that can save up to 10 SOPs. It also allows dry as well as wet grinding. Interval, regular and reverse modes also set in this high volume knife mill. This HM300 knife mill also features electromagnetic safety lid lock; lid cannot be opened during grinding process.

Model	HM300	HM100
Feed size	<130 mm	<40mm
Final fineness	< 300 μm	< 300 μm
Motor speed	500 - 4000rpm	2000 – 10000 rpm
Time setting	00：00-99：59(min/s)	0: 01-9:59 (min/s)
Batch quantity	1-4.5L	150-700ml
Interval mode	Yes	Yes
Knives	Stainless steel, Titanium coating	Stainless Steel, Titanium alloy
Number of blades	4	2
Rated power	1.5KW	1.1KW
Power supply	220V,50Hz	220V,50Hz
Instrument size(W*D*H)	303 x 575 x 485 mm	260 x 343 x 454mm
