Laboratory Shakers

Orbital shaking machines for 100, 250, 500 and 100 ml flasks

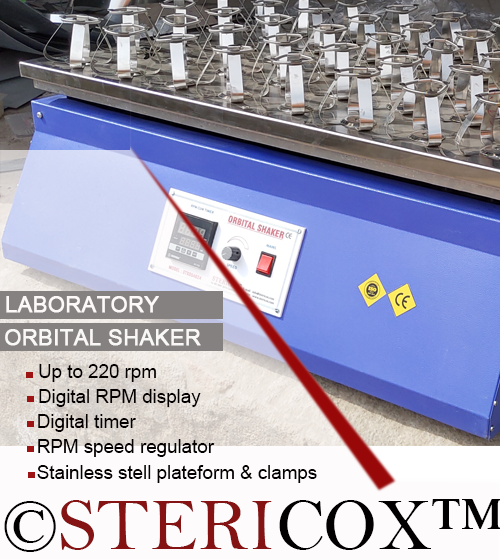

Orbital Shaker

Orbital Shakers are widely used in microbiology, chemistry, immunology, biochemistry and molecular biology for basic mixing applications and bacterial suspensions. These variable speed shakers comprise of shaking platform, speed regulator and timer to adjust duration of orbital motion. These machines are often light weight and benchtop in design.

We are orbital shaker manufacturers and suppliers in India and make orbital shakers in different platform sizes to meet demands of shaking small as well as large number of flasks of 100 ml, 250ml, 500ml and 1000 ml. Our laboratory orbital shaker machines have analog speed regulator to control speed from 20 to 225 rpm. Platform is made of stainless steel; clamps are made of either unbreakable plastic or stainless steel. The shaking mechanism is the heart of machine and made of heavy duty brushless motor which features smooth and jerk less orbital motion. The housing is made of thick sheet of mild steel duly powder coated. RPM display and digital timer are both optional accessories and fitted on special request of customer at extra price.

TECHNICAL SPECIFICATIONS

Motion Orbital
Platform MOC Stainless steel
Clamp MO SS or Unbreakable plastic
Housing Painted MS
RPM 20 - 225 RPM
Amplitude 25 mm
RPM Controller Speed Regulator
Shaking mechanism Brushless motor
Construction Heavy iron angled frame
Power supply 220 Volts 50Hz
Optional
  • RPM LED display
  • Digital timer 0 ~ 999min

STANDARD SIZES & DIMENSIONS

Model Platform size No. of flasks
STXOS12 12 x 12 Inch
  • 9 x 250 ml or
  • 9 x 500 ml or
  • 4 x 1000 ml or
  • 16 x 100 ml
STXOS18 18 x 18 Inch
  • 16 x 250 ml or
  • 16 x 500 ml or
  • 9 x 1000 ml or
  • 25 x 100 ml
STXOS22 22 x 22 Inch
  • 25 x 250 ml or
  • 25 x 500 ml or
  • 16 x 1000 ml or
  • 36 x 100 ml
STXOS26 26 x 26 Inch
  • 36 x 250 ml or
  • 36 x 500 ml or
  • 25 x 1000 ml or
  • 49 x 100 ml
