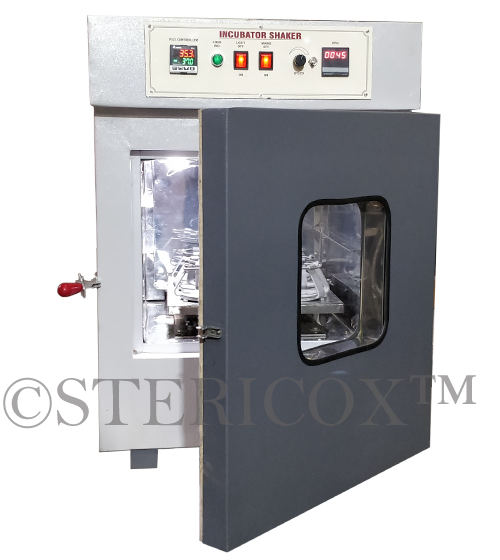

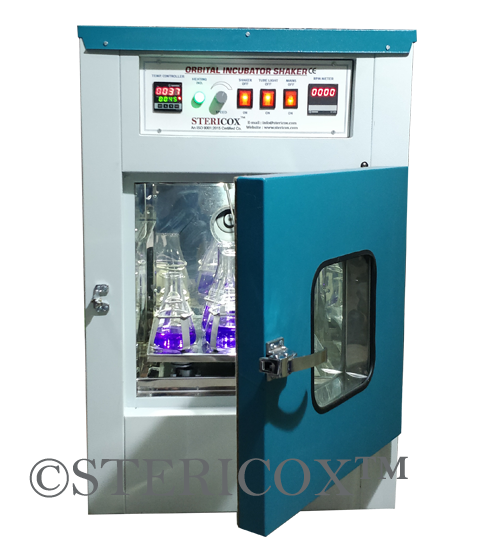

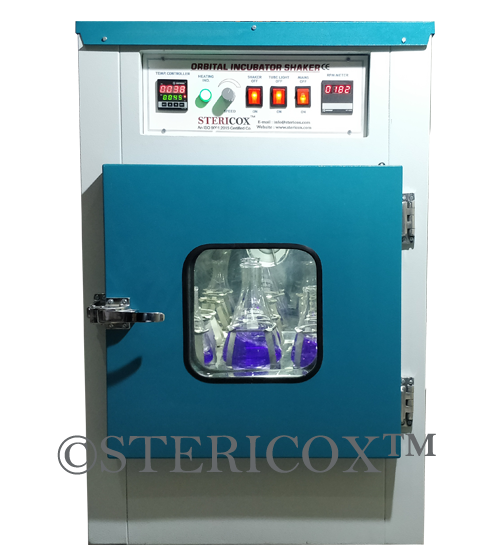

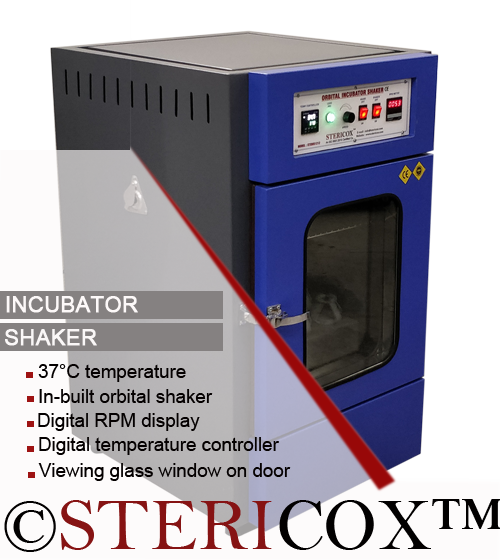

TECHNICAL SPECIFICATIONS (Heated Incubator Shaker)
| Model | STXHIS1212 | STXHIS1818 | STXHIS2222 | STXHIS2626 |
|---|---|---|---|---|
| Temperature Range | Ambient+5°C to 60°C | |||
| Environment | Heating only | |||
| Shaking Platform Size | 12” x 12” | 18” x 18” | 22” x 22” | 26” x 26” |
| Flask Capacity | 250ml x 9 / |
250ml x 16 / |
250ml x 25 / 500 ml x 25 / 1000 ml x 16 |
250ml x 36 / 500 ml x 36 / 1000 ml x 25 |
| Shaking Speed | 0 to 250 rpm (±1 rpm) | |||
| Orbital Motion Diameter | 12 mm | |||
| Shaking movement | Orbital | |||
| RPM Display | LED Display | |||
| RPM Controller | Speed regulator | |||
| Exterior | Powder Coated steel Sheet | |||
| Interior | Stainless Steel 304 | |||
| Insulation | Glass wool | |||
| Air circulation | Motor driven blower | |||
| Heater | Tubular air heaters | |||
| Temperature controller |
|
|||
| Temperature sensor | PT100 | |||
| Door | Solid door with magnetic rubber gasket & observation window | |||
| Illumination | LED light | |||
| Tray | Removable tray to keep petri dishes | |||
| Optional |
|
|||
| Power | 220 Volts / 50 Hz | |||
TECHNICAL SPECIFICATIONS (Refrigerated Incubator Shaker)
| Model | STXRIS1818 | STXRIS2424 |
|---|---|---|
| Temperature Range | 10°C to 60°C | |
| Environment | Cooling and Heating both | |
| Shaking Platform Size | 18” x 18” | 24” x 24” |
| Flask Capacity | 250ml x 16 / 500 ml x 16 / 1000 ml x 9 |
250ml x 25 / 500 ml x 25 / 1000 ml x 16 |
| Shaking Speed | 0 to 250 rpm (±1 rpm) | |
| Orbital Motion Diameter | 12 mm | |
| Shaking movement | Orbital | |
| RPM Display | LED Display | |
| RPM Controller | Speed regulator | |
| Exterior | Powder Coated steel Sheet | |
| Interior | Stainless Steel 304 | |
| Insulation | PUF | |
| Air circulation | Motor driven blower | |
| Heating | Tubular air heater | |
| Cooling | CFC free refrigeration system | |
| Temperature controller |
|
|
| Temperature sensor | PT100 | |
| Door | Solid door with magnetic rubber gasket & observation window | |
| Illumination | LED light | |
| Tray | Removable tray to keep petri dishes | |
| Optional |
|
|
| Power | 220 Volts / 50 Hz | |
