Laboratory Incubator

Air and water jacketed CO2 incubators with 90°C Heat or UV sterilization

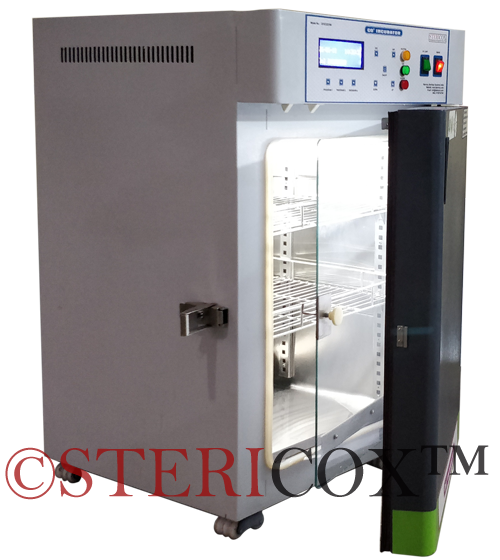

CO2 Incubator

CO2 Incubators are widely used in tissue cell culture growth applications in laboratories. These incubators are designed with CO2 gas injection system, temperature (°C) and humidity (RH) system to create suitable environment inside the chamber ideal for tissue cell culture growth; in addition, they are also used in vitro fertilization (IVF), cancer research and neuroscience etc.

We are CO2 Incubator suppliers in India. Our office is located in Delhi and we supply these cell culture Incubators throughout India at wholesale price with complete installation, commissioning, training and immediate after sales service facilities. We have wide range of imported CO2 Incubators that are rugged, durable and offer you years of worry free performance with excellent accuracy and uniformity.

Our CO2 incubators come with 90°C moist heat sterilization or UV sterilization as required. Each unit is fitted with microprocessor based LCD controller panel having facilities of adjusting CO2 percentage, Temperature and Humidity ranges. For safety, there is low and high alarm, which alerts user if there, is any variation in CO2, temperature and humidity.

Inner chamber is made of stainless steel 304 with coved corners to facilitate easy cleaning. A glass observation door is also fitted to view samples without disturbing inner environment. Standard models of our laboratory CO2 incubators come in 151 liters, 212 liters and 240 liters but also make large and customized sizes as per user requirements. Please check specifications below and email us your query for price quotation and other important details.

Note: CO2 gas cylinder and regulator are under client scope

Detailed Description

  • Construction: Inner chamber is made of stainless steel 304 with rounded (coved) corners; while exterior is powder coated and painted for corrosion free performance.
  • Jacket Type: These CO2 incubators are available in both Air Jacket and Water Jacket.
  • Door: Each CO2 incubator comes with inner glass doors and outer door. Inner glass door keeps maintain stable environment and minimizes changes to humidity, temperature and CO2 concentration; moreover shortens recovery time and reduces risk of contamination.
  • Trays: 3 nos. perforated stainless steel trays are provided with each CO2 incubator that are removable and height adjustable.
  • CO2 range: CO2 range is 0 to 20% with ±0.1% stability. It is measured by Thermal Conductivity sensor. The inlet pressure remains 0.1MPa.
  • Humidity: Air humidity remains up to 95%, which keeps cell cultures safe from drying out. For humidity, distilled water is kept at bottom of the chamber.
  • Temperature: Temperature range is ambient+5°C to 50°C. PT1000 temperature sensor ensures excellent accuracy.
  • Air filter: A 0.3µ HEPA filter is fitted at inlet of CO2 gas injection system to keep away impurities and contaminations from entering into chamber.
  • Sterilization: Our CO2 incubators are available in both 90°C moist heat sterilization and UV light (254nm) sterilization. The overnight sterilization cycle ensures efficient decontamination without need of removal of internal fittings.
  • Alarm: There are alarms for power interruption, High/low temperature variation, deviation of CO2, RH, door ajar and independent over heat protection.

Features & Benefits

  • Air jacketed construction
  • 90°C moist heat or UV sterilization
  • Microprocessor based controller
  • 0.3µ HEPA CO2 inlet filter
  • Precise CO2 control and fast recovery
  • Automatic start function
  • Toughened glass observation door
  • Corrosion free powder coated cabinet
  • Stainless steel 304 internal chamber
  • Rounded internal corners for easy cleaning

TECHNICAL SPECIFICATIONS

Model STXCO250 STXCO2100 STXCO2150 STXCO2172
Volume 50 Liters 100 Liters 150 Liters 172 Liters
Outer Powder coated GI Sheet
Inner Stainless steel 304
Insulation Glass wool
Outer door Solid Outer w/ clamp handle
Observation door Toughened glass door
Door Gasket Silicone rubber gasket
Tray Perforated or wire mesh trays
CO2 Sensor IR Sensor
CO2 Range 2% to 20%
Temperature Ambient+10°C to 60°C
Illumination LED light
Air circulation Axial fan
Humidity system Water filled at bottom tank
Sterilization UV lamp
Temperature control
  • Digital PID Controller
  • CO2 percentage setting
  • Temperature setting
  • Humidity setting
  • Display of SV & PV
Alarm
  • CO2 variation alarm
  • Temperature variation alarm
  • Humidity variation alarm
Power supply 220 Volts 50Hz
Optional
  • Water jacket construction
  • HEPA filtered air inlet
  • GMP construction (All SS 304)
  • Data logging & printer
  • PLC based HMI controller
co2 incubator India
co2 incubator 100 Liters
Tissue Culture CO2 incubator
IVF co2 incubator
Submit Your Request

CO2 Incubator Working Video

Need Customization?
Let us design your CO2 incubator as you need
