Laboratory use muffle furnace 1100°C, 1200°C, 1400°C & 1700°C

Muffle Furnace

WHAT IS MUFFLE FURNACE?

A Muffle Furnace is “box type” heat treatment equipment which is used to change physical properties of a sample at very high temperatures - for example: 1000°C, 1200°C, 1300°C, 1600°C and 1700°C. It is also called by other names such as box furnace, laboratory furnace or ceramic muffle furnace etc. These muffle furnaces are made of refractories such as ceramic muffle and fitted with embedded resistance heating wire elements or Sic or MoSi2 heating elements. These laboratory muffle furnaces are widely used in research experiments in physics lab of universities and IITs and industries including rice, steel and paint industries, biotech companies and small industrial production houses etc. The major application includes general laboratory testing, annealing, ash determination, coal analysis, leaves carbonization and lime calcination etc.

Detailed Description

Temperature range:In muffle furnace there is maximum temperature range and continuous working temperature range. Our standard models are made with maximum temperatures 1200°C, 1400°C, 1700°C and 1800°C and their continuous working temperatures are 1050°C, 1300°C, 1600°C and 1700°C respectively.

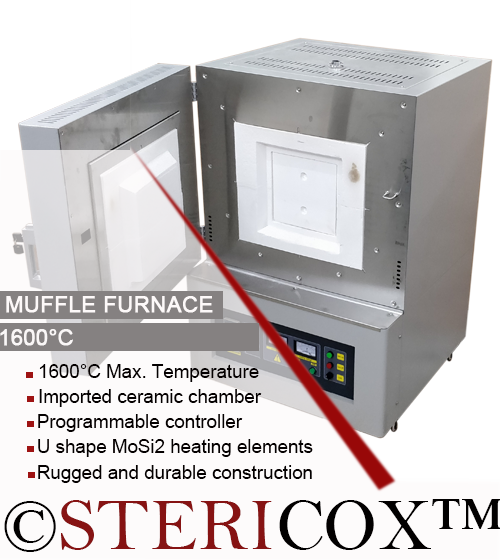

Heating Element:In muffle furnace 1200°C imported Kanthal A-1 resistive wire heating elements are used; while in 1400°C high temperature muffle furnaces, we use silicon carbide rods and MoSi2 (Molybdenum Disilicide) for 1600°C, and 1800°C.
Heating Zone: The heating zone is the most crucial part of any muffle furnace. For 1100°C or 1200°C models we make heating chamber of ceramic fiber board and for 1400°C furnace Ceramic Zirconium board is used. Ceramic board of 1900°C is used to manufacture 1800°C muffle furnace.
Temperature Thermocouple: 1200°C muffle furnace comes with K type thermocouple whereas in 1400°C muffle furnace we use S or R type thermocouple and in 1700°C muffle furnace, we use B type thermocouple.
Temperature Controller: 1200°C muffle furnace comes with single set point temperature with 9999 timer controller whereas in 1400°C and 1700°C muffle furnace we use programmable profile temperature controller with 30 segments for ramp rate and soak time. Both type of temperature controllers keep displaying set value (SV) and process value (PV).

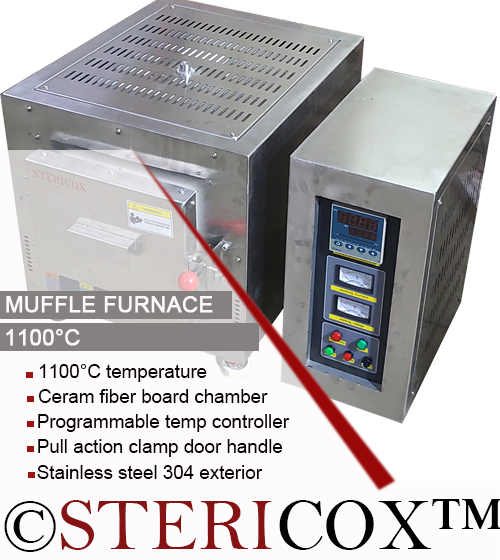

Cabinet Construction: These laboratory furnaces are built with a thick carbon steel frame. Outer cabinet is usually made of powder coated cold roll sheet. We also make GMP muffle furnaces with all stainless steel 304 grade sheets.

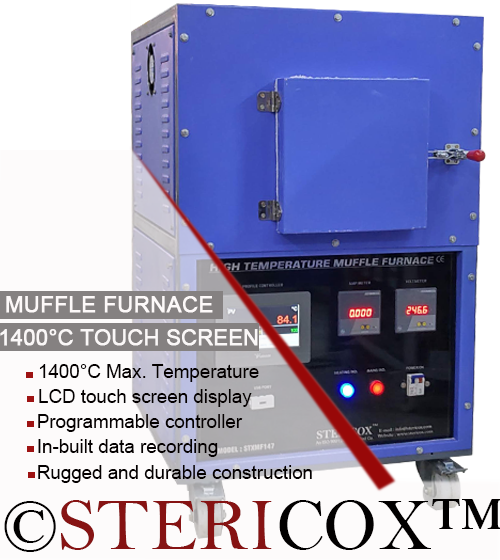

Optional Accessories:Data recording is an important optional accessory we can equip our programmable muffle furnaces. Digital temperature data recorder or a color touch screen temperature controller cum recorder are fitted with extra cost.

We are ISO and CE certified muffle furnace manufacturer in India. Our company makes muffle furnace in various temperature ranges and chamber sizes. Each unit is made with rugged construction and equipped with easy to use controller system and safety devices. Standard models of our muffle furnaces come with maximum temperature range 1200°C, 1400°C, 1700°C and 1800°C. If you want to buy any standard or customized model or know muffle furnace price, please email us your query. Our factory is located in Delhi and we supply Delhi and NCR and throughout India and also export of UAE, Africa, Philippines, Malaysia, Norway, Nepal and many other countries at factor price..

NOTE: For application where heating samples under inert atmosphere is important, we suggest to use Atmosphere Furnace or Tube Furnace.

Features & Benefites

Available in 1100°C, 1400°C, 1600°C & 1700°C temperature
Programmable (profile) temperature controller
Made of imported ceramic fiber board
Durable and long lasting heating elements
Excellent temperature accuracy & uniformity
Rugged construction for long run
Fitted with safety devices
Available in various sizes
Customization as per user requirement

Technical Specifications

Max. Temperature	1200°C	1400°C	1800°C
Continuous operating temp.	1050°C	1300°C	1700°C
Heating element	KANTHAL A1 wire	Silicon Carbide (SiC) rods or U shape	U shape MoSi2 heating elements
Thermocouple	K Type	R or S Type	B Type
Heating chamber MOC	Ceramic fiber board	Ceramic Fiber Board Zirconia Grade	1900°C ceramic fiber board
Exterior MOC	Powder coated carbon steel
Door	Swing type insulated solid door
Temperature controller	PID temperature controller with 9999 min timer	30 segments RAMP & SOAK programmable controller	30 segments RAMP & SOAK programmable controller
Power supply	220V/50Hz
Accessories	High temperature safety gloves Stainless steel tong to load / unload crucibles Operating manual
Optional	Door safety limit switch External cabinet made of SS304 Data recording / data logging Vent hole for fume exhaust Argon / Nitrogen gas purge provision

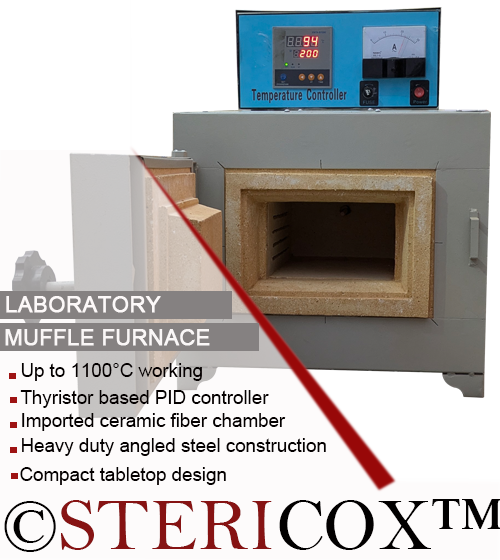

Muffle Furnace 1200°C

Model	Chamber Size (inch)	Chamber Size (mm)	Volume (Liters)
STXMF112	4 x 4 x 9	100 x 100 x 225	2 liters
STXMF114	5 x 5 x 10	125 x 125 x 250	4 liters
STXMF117	6 x 6 x 12	150 x 150 x 300	7 liters
STXMF1112	8 x 8 x 12	200 x 200 x 300	12 liters
STXMF1128	12 x 12 x 12	300 x 300 x 300	28 liters
STXMF1142	12 x 12 x 18	300 x 300 x 450	42 liters
STXMF1156	12 x 12 x 24	300 x 300 x 609	56 liters

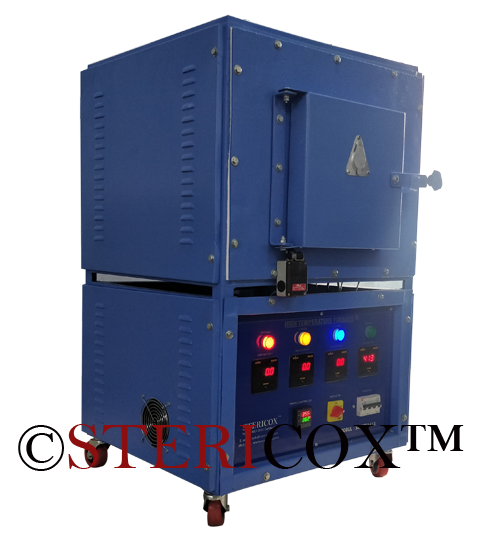

Muffle Furnace 1400°C

Model	Chamber Size (inch)	Chamber Size (mm)	Volume (Liters)
STXMF142	4 x 4 x 9	100 x 100 x 225	2 liters
STXMF144	5 x 5 x 10	125 x 125 x 250	4 liters
STXMF147	6 x 6 x 12	150 x 150 x 300	7 liters
STXMF1412	8 x 8 x 12	200 x 200 x 300	12 liters
STXMF1428	12 x 12 x 12	300 x 300 x 300	28 liters
STXMF1442	12 x 12 x 18	300 x 300 x 457	42 liters
STXMF1456	12 x 12 x 24	300 x 300 x 609	56 liters

Muffle Furnace 1800°C

Model	Chamber Size (inch)	Chamber Size (mm)	Volume (Liters)
STXMF181	4 x 4 x 4	100 x 100 x 100	1 liter
STXMF184.5	6 x 6 x 8	150 x 150 x 200	4.5 liters
STXMF1812	8 x 8 x 12	200 x 200 x 300	12 liters
STXMF1836	12 x 12 x 16	300 x 300 x 400	36 liters
STXMF1864	16 x 16 x 16	400 x 400 x 400	64 liters
STXMF1896	16 x 16 x 24	400 x 400 x 600	96 liters
STXMF18216	24 x 24 x 24	600 x 600 x 600	216 liters
