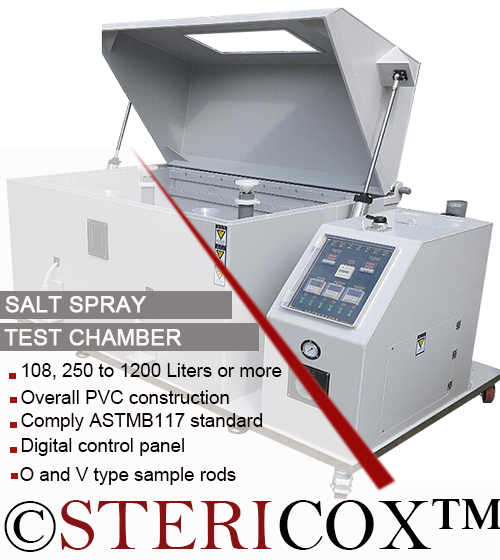

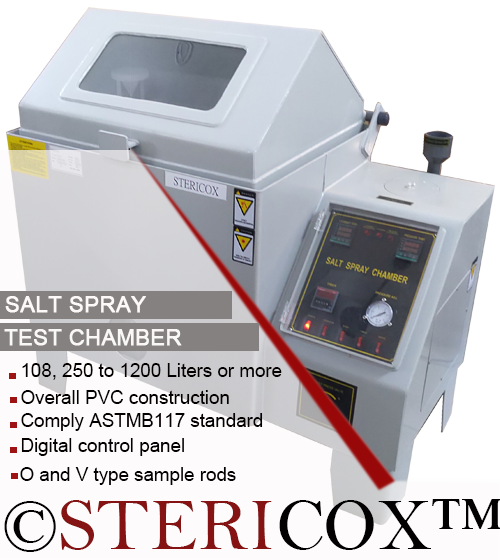

Stericox India Private Limited, salt spray chamber manufacturers and exporters in India since 1978, designs and builds salt spray test chambers (also called salt fog chambers, salt mist chambers or salt spray cabinets) for accelerated corrosion testing of coatings, plating and metal parts. Our chambers are available in 108, 270, 480, 800 and 1200 litre capacities. They are built for ASTM B117, ISO 9227 and JIS Z 2371 testing, including NSS, AASS and CASS methods. We supply across India and export worldwide.
Salt spray chamber price starts from ₹1,50,000; delivery, installation and service support all over India and export to middle east countries, Africa, Nepal, Bhutan, Bangladesh, Philippines, Malaysia etc.
MODELS & SPECIFICATIONS
Ready in Stock Economy Models:
| Model | STXSSC108 | STXSSC270 |
|---|---|---|
| Capacity | 108 L | 270 L |
| Inner dimensions (L*W*H) | 600*450*400 mm | 900*600*500 mm |
| External dimensions (L*W*H) | 1100*600*1050 mm | 1400*810*1150 mm |
| Temperature control | PID Temperature controller | PID Temperature controller |
| Humidity display | No | No |
| Canopy opening | Manual | Manual |
| Power Supply | 230V Single Phase | 230V Single Phase |
Ready in Stock Premium Models:

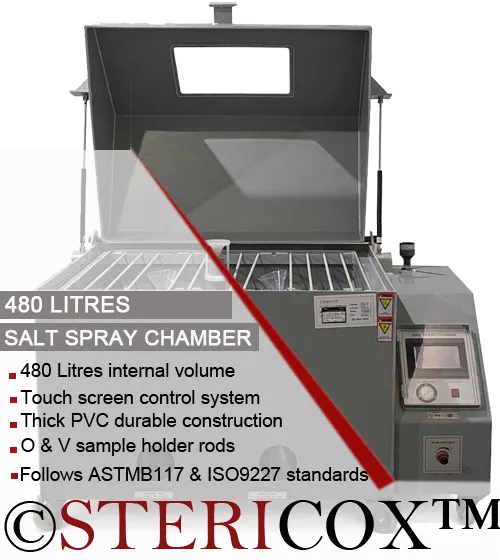

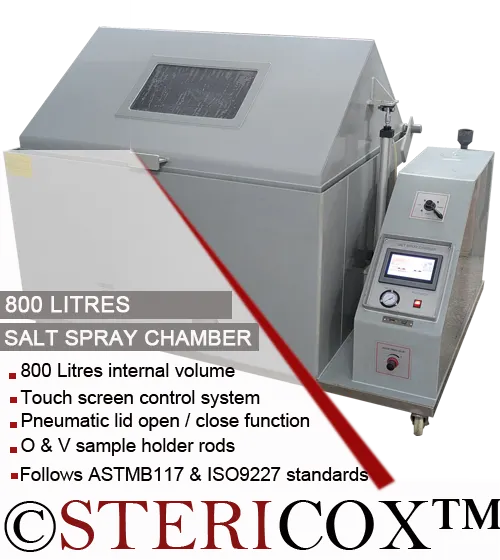

| Model | STXSSC480 | STXSSC800 | STXSSC1200 |
|---|---|---|---|
| Capacity | 480 L | 800 L | 1200 L |
| Inner dimensions (L*W*H) | 1000*800*600 mm | 1600*1000*500 mm | 2000*1000*600 mm |
| External dimensions (L*W*H) | 1550*1100*1600 mm | 2150*1300*1500 mm | 2700*1300*1600 mm |
| Temperature control | PLC based HMI | PLC based HMI | PLC based HMI |
| Humidity display | Yes | Yes | Yes |
| Canopy opening | Manual | Pneumatically operated | Pneumatically operated |
| Power Supply | 230V Single Phase | 230V Single Phase | 415V Three Phase |
TECHNICAL SPECIFICATIONS (All Models)
| PARAMETERS | SPECIFICATIONS |
|---|---|
| Temperature Range | Ambient+5°C to 55°C (Working chamber) |
| Temperature Range | Ambient+5°C to 63°C (Saturated barrel) |
| Temperature Accuracy | ±2°C |
| Temperature sensor | PT100 (corrosion free) |
| Humidity Range | >95% RH (Not controlled) |
| Humidity Accuracy | ±3% RH |
| Control panel | Temperature control of Main chamber & Saturated barrel (brine tank) Timer, Defog button, Pressure adjustment knob, water level indicators |
| Spray Quantity | 1.0 to 2.0 ml / 80cm2 / hr |
| Spray Nozzle | Durable glass nozzle for salt spray |
| Spray assembly | Spray assembly includes silicone rubber pipes with spray tower, fog collection funnel and calibration tube |
| Heater | Corrosion free Titanium tube heating element |
| Pressure control | Air pressure regulator with pressure gauge |
| Air pressure | 0.7 to 1.7 kg/cm2 |
| Timer | 1 to 9999 (S, M & H) |
| Construction | Thick PVC construction for corrosion free performance |
| Canopy | Conical shape canopy LID made of PVC & transparent acrylic window |
| Sample holder | O and V shape PVC rods for sample holding at tilt angle |
| Safety | Low water level safety cut-off |
| Optional | Air compressor |
FEATURES & ADVANTAGES OF STERICOX SALT SPRAY CHAMBER
- Complete corrosion-resistant PVC construction: light and durable
- Complies with ASTM B117, ISO 9227 and JIS Z 2371
- Supports NSS, AASS and CASS test methods
- PID digital controller (108 L and 270 L) or touch screen HMI (480 L and above)
- Corrosion-free PT100 temperature sensors
- Titanium tube immersion heater that resists brine attack
- Manual or pneumatic lid with transparent acrylic viewing window
- Glass spray nozzle, air pressure regulator and pressure gauge
- Built-in test timer and defog function at the end of the cycle
- Low water level and over-temperature protection
- Supplied with V and O shaped sample holders
- Each unit tested before dispatch, packed in a wooden box, with installation, commissioning and after-sales service across India
WHAT IS A SALT SPRAY CHAMBER?
A salt spray chamber is a corrosion test chamber that exposes samples to a controlled, continuous mist of salt solution at a set temperature. It speeds up corrosion so you can judge in hours or days how well a paint, powder coating, plating, anodizing or passivation layer will resist rust and degradation. The test is widely used in quality control and R&D for:
- Automotive parts: brake components, fasteners, brackets, wheels
- Fasteners and hardware: nuts, bolts, screws, fittings, tools
- Electroplating and surface finishing: zinc, nickel, chrome, anodizing
- Paints and powder coatings: panels and coated sheets
- Electrical and electronic parts: connectors, enclosures, switchgear
- Aerospace, marine and defence components
WORKING PRINCIPLE OF A SALT SPRAY CHAMBER
An artificial corrosive environment is created in the salt spray chamber by continuous spraying of a salt solution (5% NaCl in water). A controlled temperature is maintained (35 °C ± 2 °C in the working chamber and 45°C in the air saturator or brine tank). At a relative humidity greater than 95%, a uniform salt mist is distributed over the samples to evaluate the level of oxidation.
The chamber produces a dense, uniform salt fog like this:
- Salt solution: 5% sodium chloride (NaCl) in distilled or deionised water is stored in the brine tank. A typical mix is 500 g NaCl in 9.5 L water.
- Fog generation: compressed air at a regulated pressure of 0.7–1.7 kg/cm² (about 0.7–1.7 bar) passes through the air saturator and then the spray nozzle, which atomises the brine into fine fog.
- Temperature control: the working chamber is held at 35 °C ± 2 °C. The air saturator (bubble tower) is heated higher, typically about 45–48 °C depending on air pressure, so the air reaches the chamber fully humidified; 95% or higher.
- Exposure: samples sit on V and O shaped PVC rods at a tilt of 15–30° from vertical, with relative humidity above 95%.
- Fog collection: a collection funnel and calibration tube verify a fallout rate of 1.0–2.0 mL per 80 cm² per hour, as the standards require.
- Evaluation: after the set duration (commonly 24 to 1000+ hours), samples are inspected for red rust, white rust, blistering and creepage.
TEST STANDARDS FOLLOWED BY A SALT SPRAY CHAMBER
A salt spray chamber typically follows three major international test standards ASTM B117, ISO9227 and JIS Z 2371.
| TEST STANDARD | TEST METHOD | TEST DETAILS |
|---|---|---|
| ASTM B117 | NSS (Neutral Salt Spray) | 5% NaCl, 35°C, pH 6.5–7.2 |
| ISO9227 | NSS, Acetic Acid Salt Spray (AASS) & Copper-Accelerated Acetic Acid Salt Spray (CASS) | 35°C (NSS/AASS) or 50°C (CASS) pH 3.1–3.3 (AASS / CASS) |
| JIS Z 2371 | NSS, AASS & CASS | A Japanese test standard similar closely aligned with ISO9227 |
IMPORTANT PARTS OF A SALT SPRAY CHAMBER
- Main chamber: Main chamber is made of thick PVC plastic which is corrosion resistant. Main chamber also have water over flow valve and cleaning drain valve. There is also an air tight closing lid with transparent window, which is manually operated or pneumatically operated depending upon the model features.
- Brine Tank: It is also called salt solution reservoir where Sodium Chloride (NaCl) and water solution is kept to generate salt fog; ideal combination is 500gm NaCl in 9.5L water.

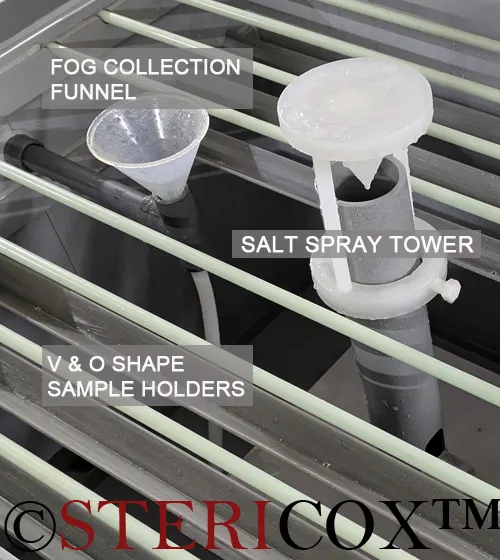

- Spray Nozzle & fog collector: Glass nozzle is fitted to spray salt fog with the help of pressure regulator. Compressed air pressure (0.7 to 1.7 kg/cm²) is provided to generate fog spray. A fog collector is a device to measure fog condensation rate 1–2 ml/hr per 80 cm² as per ASTM standard.
- Safety Features: Over temperature safety and low water level safety protections are important features.

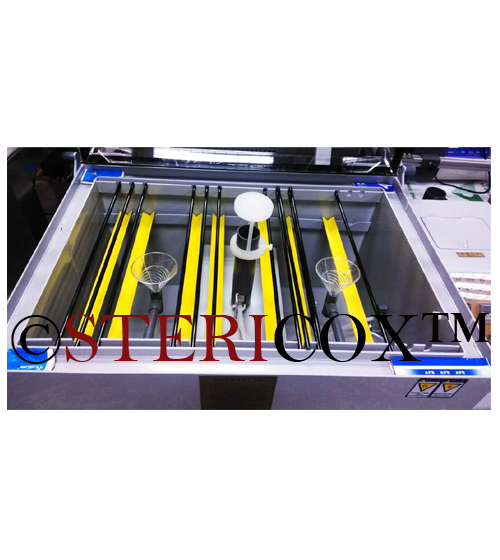

- Sample Holder: V shape and O shape rods are provided to keep samples at 15° to 30° tilt position in order to optimized fog exposure to the samples.

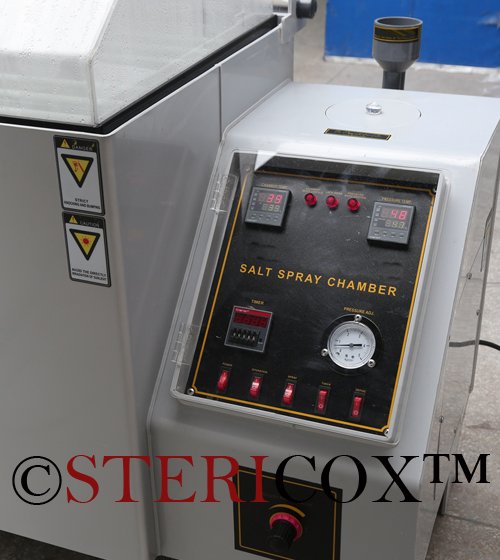

- Control panel: Control panel is fitted on right side of the equipment in which temperature controllers are fitted to control temperature of main chamber and the brine tank, salt fog test timer and some ON/OFF switches for machine on/off, timer on/off and defog. Low water level indicators are also there. Color touch screen controller with data recording is an optional part.
WHAT IS PRICE OF A SALT SPRAY CHAMBER
Salt spray chamber price starts from 1,50,000/- INR onwards. Different model may have different price. The actual price of a particular model may vary depending upon chamber volume, type of automation fitted and delivery charges etc. You are welcome to contact us for a detailed quote.
We are Salt Spray Test Chamber manufacturers and suppliers in India. Our engineering team carefully designs and manufactures each salt spray chamber that meets internal quality standards. Standard models come in 108 liters, 270 liters, 480 liters, 800 liters and 1200 liters volume. Each unit is carefully tested before dispatch and delivered in a wooden packing box with complete installation and commissioning support. We also have dedicated after sales service team across India. We supply our salt spray chamber at factory price and also export to Philippines, UAE, Africa, Greece, Malaysia, Nepal and Israel etc.

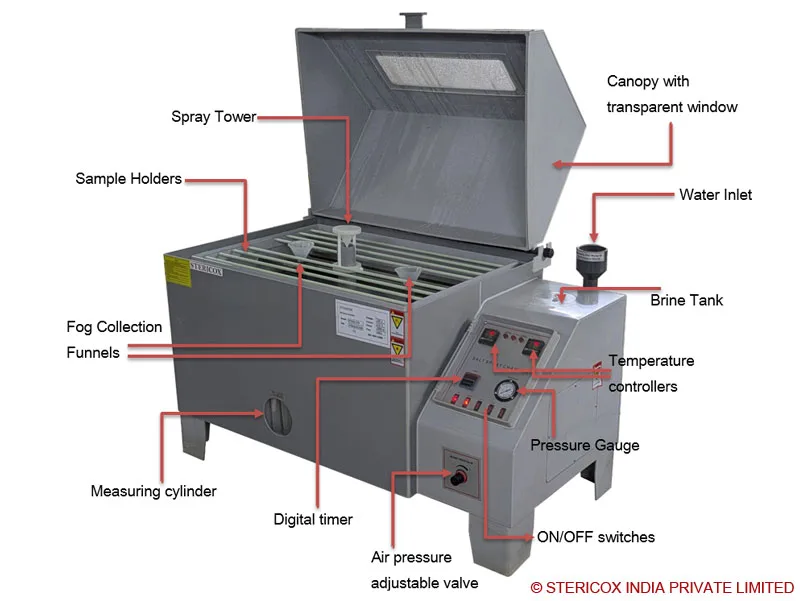

GRAPHICAL PRESENTATION OF A SALT SPRAY CHAMBER
