Environmental Test Chamber

Hot and cold temperature cycle test chambers

Temperature Cycling Chamber

Temperature cycling chambers are ideal for test applications that require quick change in temperature ramp rate such as 15°C or 20°C per minute. In such applications ramp rate of hot and cold temperatures is important and also mandatory in some standards such as IEC, JESD, SAE and IPC. These chambers are widely used for testing PCB, electronic components, semiconductor devices, battery, various electronic devices like mobile phones, LED and LCD TV and monitor etc.

We are hot and cold temperature cycle chambers manufacturers in India. Our standard chambers are built with heavy gauge stainless steel chamber and equipped with PLC based HMI controller for precise accuracy and uniformity of temperature. Each chamber is carefully designed and tested prior dispatch and installation and all these are at economical price in India.

Detailed Description

  • Temperature: Standard temperature range of a hot and cold chamber is -70°C to 180°C. We also provide customized range lower than this such as -20° to 70°C and -40°C to 100°C etc. Standard ramp rate / temperature change rate is 15°C.
  • Control System: We equipment our temperature cycling chambers with PLC based HMI controller, which features color touch screen, temperature control settings, ramp and soak time etc. Various types of errors in machine are also seen on the screen. It also features data monitoring and storage, user can save readings in pen drive through USB interface.
  • Construction: Standard chambers are made with stainless steel inner chamber; while exterior cabinet is made of powder coated GI sheet. The steel frame is nicely welded and firmly jointed to ensure you a rugged machine. High density PUF insulation is filled in the gap between inner and external walls. Heavy duty caster wheels are fitted at bottom for easy mobility of the temperature cycling chamber.
  • Door: The door is also insulated and fitted with imported latch. A silicone gasket is fitted on the door for excellent sealing. A frost free observation glass window is also provided on the door.
  • Heater: Only branded SS tubular air heaters are used in our hot and cold chambers to generate heat. These heaters provide rapid heating with long service life.
  • Refrigeration: For low and freezing temperature, we use only imported refrigeration system which is CFC free; usually we use only EMERSON make compressor which offers trouble free cooling for years.


  • TECHNICAL SPECIFICATIONS

    Temperature range
    • -70°C to 180°C
    • Or as required
    Ramp rate / temperature cycling 10°C - 15°C / minute or as required
    Inner chamber Stainless steel 304
    External cabinet Powder coated GI sheet
    Door
    • Insulated door with clamp
    • Heated glass window
    • Silicone gasket for sealing
    Controller
    • PLC based HMI controller
    • Color touch screen
    • Display of SV & PV
    • In-built data logging
    • Trend graph display
    Trays Steel wire mesh cable trays
    Sensor PT100
    Heater SS tubular air heater
    Refrigeration system CFC free hermetically sealed compressor
    Air circulation Motor driven blower
    Safety features
    • Temperature variation alarm
    • Over temperature protection
    • Delay timer for compressor
    Power supply 220 / 440 Volts 50Hz
    Optional
    • 30 / 50 mm port hole
    • Ethernet connection
    • Strip chart recorder
    • Complete SS construction
    • Humidity system


    STANDARD SIZES / DIMENSIONS

    Model Number Volume (Liters) Inner Dimensions (W x D x H)
    STXTCC160 160 Liters 800 x 400 x 500 mm
    STXTCC216 216 Liters 600 x 600 x 600 mm
    STXTCC300 300 Liters 500 x 500 x 1200 mm
    STXTCC400 432 Liters 600 x 600 x 1200 mm
    STXTCC600 588 Liters 700 x 700 x 1200 mm
    STXTCC1000 1000 Liters 1000 x 1000 x 1000 mm

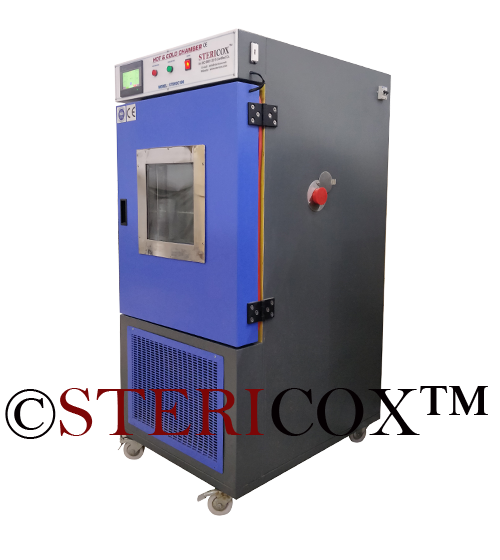

Hot and Cold Chamber

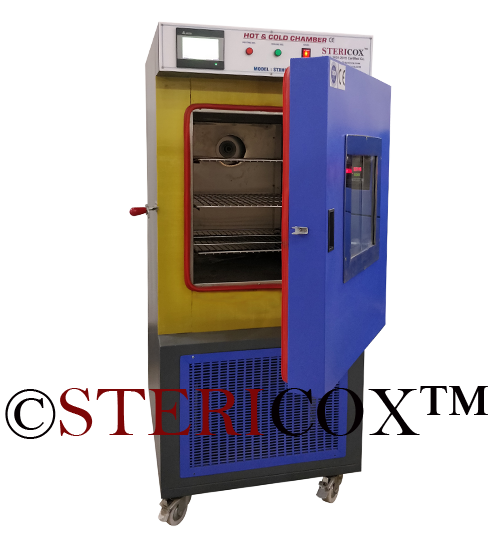

Thermal Cycling Chamber
Temperature Cycling Chamber
