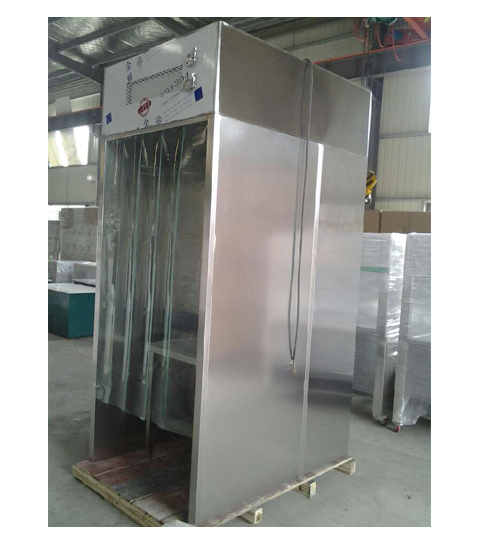

Dispensing booth is a kind of laminar flow filtration cabin which is employed in dispensing, sampling and weighing of powders and chemicals in pharma, biotech and chemical industries. Such units work on reverse laminar flow working principle and provide protection to operators, products / samples and surrounding environment.
Dispensing Booth Construction
Dispensing booth is usually made of stainless steel and equipped with three stage filtration (10µ Pre-filter, 310µ Intermediate and 0.310µ HEPA Filter) with the help of motor blower assembly. In order to measure the pressure of HEPA filter, magnehelic gauges are fitted. Pre-filters are washable.
We make dispensing booth for pharma industry. Our team carefully designs dispensing booth units according to user provided specifications and the job is completed with construction in our factory then installation, commissioning and validation at client site. Also known as sampling booth or weighing booth, these units are made requirements of pharmaceutical and biotech companies in mind. Before dispatch, each unit is tested in-house at various parameters. If you are looking for such units, please email us your query, we will provide you precise price quotation with all important details.
TECHNICAL SPECIFICATIONS
| Construction material |
SS304 / SS316 |
| Filtration |
- 3 stage filtration
- Pre-filter 10µ
- Fine filter 5µ
- HEPA filter 0.3µ
|
| Air flow |
Recirculating laminar air flow |
| Air Velocity |
90 ± 20 cfm (Average) |
| Blower unit |
Heavy duty motor blower assembly |
| Illumination |
1, 2 or 3 or as required Tube lights |
| Power supply |
220 Volts 50Hz |
| Fittings |
- Mains ON/OFF switch
- Light ON/OFF switch
- Blower ON/OFF switch
|
| Optional |
- Magnehelic gauge
- UV light
- Anti-static PVC Curtains
- On-site validation
- IQ, OQ, PQ documents
|
Standard Sizes / Dimensions
| Model |
Inner dimensions (W x D x H) |
Inner dimensions (W x D x H) |
| STXDB226 |
2 x 2 x 6 Ft |
610 x 610 x 1828 mm |
| STXDB326 |
3 x 2 x 6 Ft |
914 x 610 x 1828 mm |
| STXDB426 |
4 x 2 x 6 Ft |
1219 x 610 x 1828 mm |
| STXDB336 |
3 x 3 x 6 Ft |
914 x 914 x 1828 mm |
| STXDB436 |
4 x 2 x 6 Ft |
1219 x 610 x 1828 mm |
| STXDB446 |
4 x 4 x 6 Ft |
1219 x 1219 x 1828 mm |
| STXDB626 |
6 x 2 x 6 Ft |
1828 x 610 x 1828 mm |
| STXDB646 |
6 x 4 x 6 Ft |
1828 x 1219 x 1828 mm |
| STXDB666 |
6 x 6 x 6 Ft |
1828 x 1828 x 1828 mm |
