Autoclave

Top loading vertical steam sterilizers

Vertical Autoclave

Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These are widely used in hospitals, Operation Theater (OT), microbiology laboratory for sterilization of various medial and cultures. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.

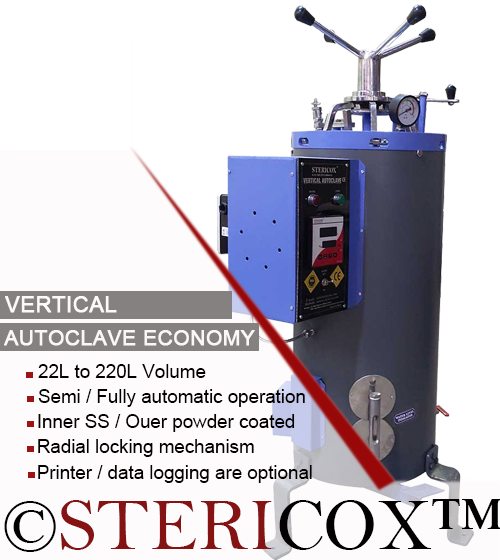

We make various types of vertical autoclave machines as per budget and intended use. Economy models come with powder coated MS exterior and stainless steel interior. Our Deluxe models are double walled vertical autoclaves and made with inner and exterior both of stainless steel; while the Triple Walled models have another chamber and all three walls are made of thick gauge of stainless steel sheets. At Stericox, we make every vertical steam sterilizer following ASME guidelines in order to ensure that they are safe for users and samples.

We have over 40 years of experience in autoclave manufacturing and in these years, we have participated in many Govt. tenders and successfully installed our semi and fully automatic vertical autoclaves in top hospitals in India. Furthermore, these machines have been acclaimed by industry experts because of ergonomic design, easy working and reasonable price.

Features & Benefits

  • Stainless steel interior
  • Digital temperature indicator
  • Digital temperature Controller
  • ISI marked flange / immersion heating elements
  • Up to 121°C temperature range
  • Silicone rubber gasket
  • Automatic pressure control switch
  • Stainless steel basket
  • Reliable steam pressure gauges
  • Double or triple walled construction
  • Pedal for lid opening
  • Water level indicator
  • Water inlet & outlet valves


Technical Specifications

Construction Economy Model Double Walled Model Triple Walled Model
MOC Exterior Painted MS sheet SS 304 (mirror finish) SS 304 mirror finish)
No. of walls Two Two Three
Lid Polished MS SS 304 SS 304
Interior SS 304 with silicon gasket
Working Pressure 15 to 20 psi
Working Temperature 121°C to 125°C
Controller Auto set to 15psi & 121°C
Pressure display Analog dial gauge
Timer Mechanical timer
Hydraulic tested Hydraulically Tested up to 40 psi (ASME Guideline)
Basket Stainless steel basket Stainless steel basket Not Required
Power supply 220 Volts 50Hz
Standard Fittings
  • Low water indicator
  • Automatic pressure switch
  • Pedal lifting device
  • Steam release valve
  • Water outlet valve
  • Spring loaded safety valve
  • Power cable with three pin top
Optional Accessories
  • Fully stainless steel construction (GMP)
  • Up to 134°C temperature range
  • PID temperature controller cum timer with alarm (buzzer)
  • PLC with HMI interface with data logging
  • 21 CFR Part 11 software

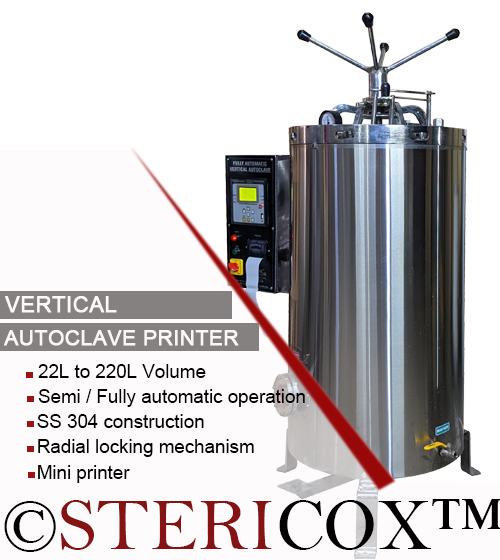

  • Thermal Printer
  • Lower water cut-off

Standard Sizes / Dimensions

Dia. x Height Volume Watt
250 mm x 450 mm 22 liters 1 KW
300 mm x 500 mm 35 liters 2 KW
350 mm x 550 mm 50 liters 3 kw
400 mm x 600 mm 75 liters 4 kw
450 mm x 600 mm 95 liters 4 kw
450 mm x 750 mm 120 liters 5 kw
550 mm x 750 mm 175 liters 6 kw
