Cyindrical and rectangular design horizontal type autoclaves

Horizontal Autoclave

In order to meet large capacity sterilization needs, Stericox brings to you a comprehensive range of horizontal autoclaves. These horizontal autoclaves are front loading in design, big in size and designed in cylindrical or rectangular shapes. These high pressure front loading autoclaves play important role in sterilization procedures required in hospitals, pharmaceutical companies, biopharma and microbiology laboratories etc.

Stericox is one of the top horizontal autoclave manufacturers in India. The company offers custom engineered machines with choice of useful accessories at very reasonable price. A horizontal autoclave comprises of a sterilization chamber, boiler, piping and fitting, sensors and control panel; all parts and components are jointed and fitted on a stand; this makes a complete floor mounted unit.

Our horizontal autoclave units are made of stainless steel to ensure corrosion resistance surface. Tipple walled construction ensures excellent level of safety. Boiler is fitted separately and connected to the chamber. Water level indicator is also attached to the boiler. Automatic low water cut-off is optional and fitted on demand only. Each unit is fitted with automatic pressure control switch; it is capable to manage pressure between 5 psi to 20 psi with accuracy of ±1 psi. User can easily set the desired temperature with the help of digital controller fitted on the front side of the unit. In order to achieve trustable tight sealing of door, we always use neoprene rubber gasket. In order to make our horizontal autoclave well suited to your application and to make your work easier, we offer a range of optional accessories.

Before supplying to customer, our horizontal autoclaves are tested up to 30 psi pressure along with other parameters such as leakage, power control, temperature control, safety valves and important parts of the machine. Our stringent quality control process ensures our customers that they are buying finest quality products from Stericox.

Features & Benefits

  • Cylindrical / Rectangular design
  • Stainless steel interior and exterior
  • ISI marked flange / immersion heating elements
  • Working pressure 15 psi to 20 psi
  • Standard temperature 121°C

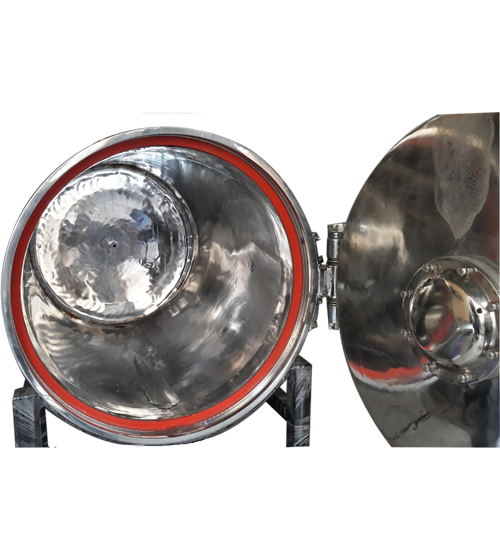

  • Silicon rubber door gasket
  • Digital Temperature controller
  • Digital Timer and alarm (buzzer)
  • Automatic pressure control switch
  • Reliable steam pressure gauges
  • Vacuum breaker and steam trap valve
  • Brass safety valves
  • Viewing glass water level check
  • Triple walled construction
  • Automatic water level cut-off
  • Powder coated / chrome plated MS Stand


Technical Specifications

Design Type Cylindrical or Rectangular
Construction Triple Walled
Inner chamber SS 304 with full argon welding
External chamber SS 304
Finishing Mirror finished inner and external surface
Insulation Glass wool
Boiler
  • Made of SS 304 sheet
  • water inlet & outlet valves
  • Water level glass window
  • Boiler safety valve
All piping SS 304
Chamber condensate line Fitted with steam trap and check valve
Working temperature 121°C
Working pressure 15 to 20 psi
Hydraulic tested on 40 psi
Controller type
  • PID temperature controller
  • Digital timer controller with END cycle buzzer
Sensor PT100
Heaters ISI mark immersion heaters
LID SS 304 w/ Pressure locking device
Radial locking system Chrome plated MS
Stand Chrome plated MS
Pressure
  • Automatic pressure control switch
  • Analog dial  type pressure gauge
  • Manual pressure release valves for chamber & jacket
Multiport valve
  • Selection of sterilization
  • Only chamber pressure release
  • Full chamber / jacket both pressure release
Tray Perforated tray made of SS 304
Standard fittings
  • Mains MCB
  • Silicon gasket
  • Vacuum breaker
  • Stream trap
  • Pressure safety valve
  • Boiler safety valve
Power supply 440 Volts 50Hz, Three Phase
Optional
  • Working at 30 psi with 134°C
  • Provision of vacuum drying
  • Low water cut-off
  • Digital pressure display
  • Auto release of pressure through solenoid valves
  • Complete SS 304 / SS 316 construction (GMP model)
  • PLC + Color HMI with Data logging, USB interface, Ethernet
  • Thermal printer

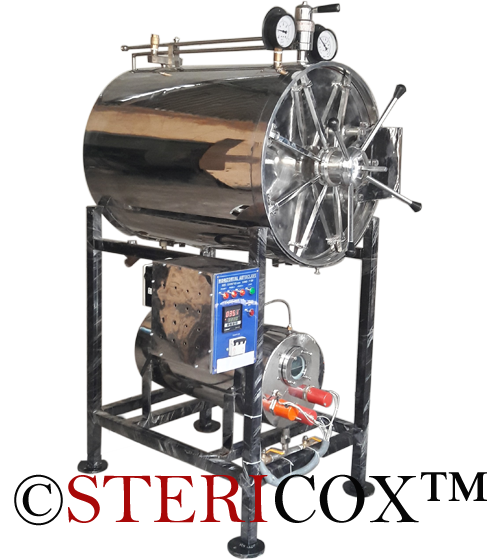

STERICOX™ HORIZONTAL AUTOCLAVE (CYLINDRICAL)

Model No. Dia. x Height (mm) Volume (Liters)
STXHAC075 400 x 600 75
STXHAC138 400 x 1100 138
STXHAC176 500 x 900 176
STXHAC178 550 x 750 178
STXHAC235 500 x 1200 235
STXHAC339 600 x 1200 339
STXHAC552 750 x 1200 552


STERICOX™ HORIZONTAL AUTOCLAVE (RECTANGULAR)

Model No. W x H x D (mm) Volume (Liters)
STXHAR182 450 x 450 x 900 182
STXHAR243 450 x 600 x 900 243
STXHAR324 600 x 600 x 900 324
STXHAR432 600 x 600 x 1200 432
STXHAR540 600 x 750 x 1200 540
STXHAR810 600 x 900 x 1500 810
STXHAR1215 900 x 900 x 1500 1215
